Are there two Load Balancer Controllers with EKS ?

I stumbled once again when I was exposing the Kubernetes service via Network Load Balancer and discovered two ways of creating NLB in EKS.

Have you ?

Scenario

  • EKS cluster is setup
  • AWS Load Balancer Controller is deployed
  • Deployed some nginx pods
  • Deployed service to be accessible outside the EKS cluster via Network Load Balancer (NLB)

Configuration 1 — Service Type : LoadBalancer with No Annotations

#nginx-service-aws-legacy-controller.yamlapiVersion: v1
kind: Service
metadata:
name: nginx-service
spec:
ports:
— port: 80
targetPort: 80
protocol: TCP
type: LoadBalancer
selector:
app: nginx

Deploy the service.

kubectl apply -f nginx-service-aws-legacy-controller.yaml

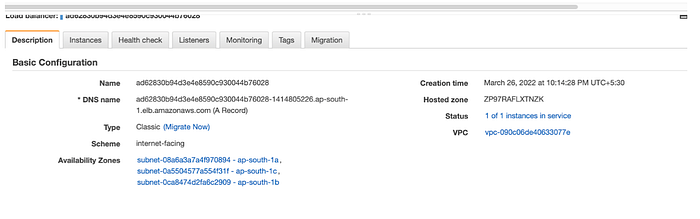

The load balancer is created with following details.

Observations

  • Classic type load balancer is created
  • Load Balancer DNS name starts with adxx-141xxx-ap-south-1.elb.amazonaws.com
  • Tags are added e.g. kubernets.io/service-name : default/nginx-service

Configuration 2 — Using aws-load-balancer-type: nlb annotation

#nlb-nginx-service-aws-legacy-controller.yamlapiVersion: v1
kind: Service
metadata:
name: nginx-service
annotations:
service.beta.kubernetes.io/aws-load-balancer-type: nlb
spec:
type: LoadBalancer
selector:
app: nginx
ports:
— protocol: TCP
port: 80
targetPort: 80

Create service in EKS cluster.

kubectl apply -f nlb-nginx-service-aws-legacy-controller.yaml

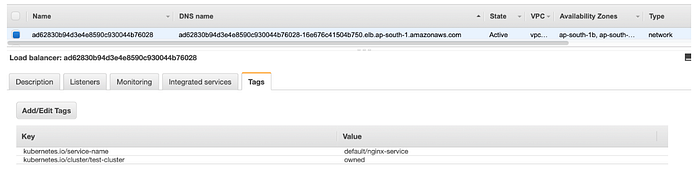

The following gets created.

Observations

  • Network load balancer is created
  • Load Balancer DNS name starts with adxx-16xxx.elb.ap-south-1.amazonaws.com
  • Note the tag name — kubernets.io/service-name : default/nginx-service

Configuration 3 — Using aws-load-balancer-type: “external” annotation

apiVersion: v1
kind: Service
metadata:
name: nlb-nginx-service
annotations:
service.beta.kubernetes.io/aws-load-balancer-type: "external"
service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: "ip"
service.beta.kubernetes.io/aws-load-balancer-scheme: "internet-facing"

spec:
ports:
- port: 80
targetPort: 80
protocol: TCP
type: LoadBalancer
selector:
app: nginx

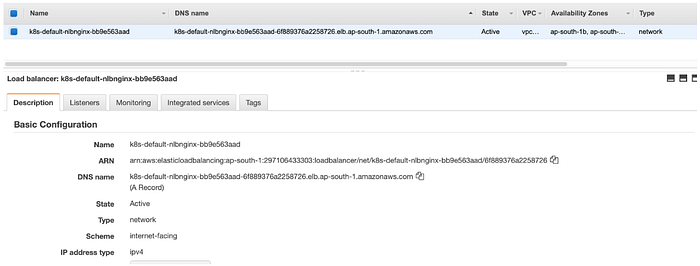

It creates the following load balancer in AWS.

Observations

  • Creates Network load Balancer
  • Load Balancer DNS Name is very different compared to earlier ones (it starts with k8s-default-xxx, the dns name is having xx.elb.region.xx format as opposed to xx.region.elb.xx format as seen in earlier configrations)

K8s-default-nlbnginx-bb9e563aad-6f889376a2258726.elb.ap-south-1.amazonaws.com

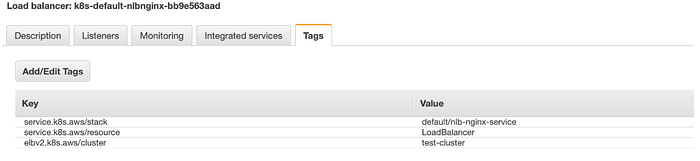

  • Tags are also quite different as seen below.

What is going on here ?

It looks like these load balancers are created bit differently in configurtion 3…

The external value for aws-load-balancer-type is what causes the AWS Load Balancer Controller, rather than the AWS cloud provider load balancer controller, to create the Network Load Balancer.

Wait a minute…so it implies there are two different types of Controllers creating the load balancers in the EKS cluster.

The Configuration 1 and Configuration 2 kicks in AWS cloud provider load balancer controller (I tend to call it legacy now ) where as the Configuration 3 kicks in the AWS Load Balancer Controller (new one) !

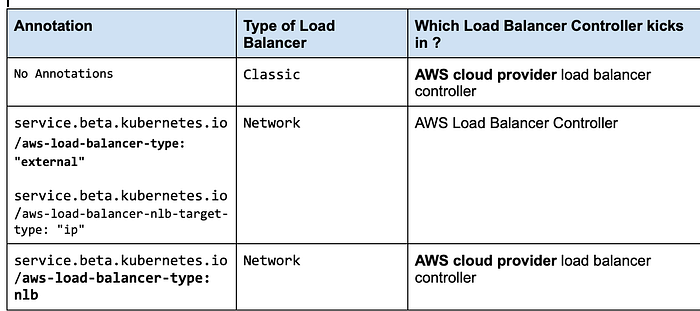

Summary

Even if you use AWS Load Balancer Controller add-on with EKS the AWS cloud provider load balancer controller (legacy ) still kicks in based on what is specified in the service annotation !

--

--
